Concepts

Overview

Understanding the core building blocks of observability helps you monitor, debug, and optimize your applications. The four key concepts work together to give you complete insight into your application's behavior: spans and traces show you what's happening and how long it takes, metrics reveal trends and performance over time, and logs capture specific events and details.

New to observability? Another great resource is the OpenTelemetry primer.

Concepts

Concept	Description
Span	Atomic unit of telemetry data
Trace	Contains spans, tree structure shows parent/child relationships
Metric	Values calculated using telemetry data
Log	No duration, timestamped, emitted by services/loggers

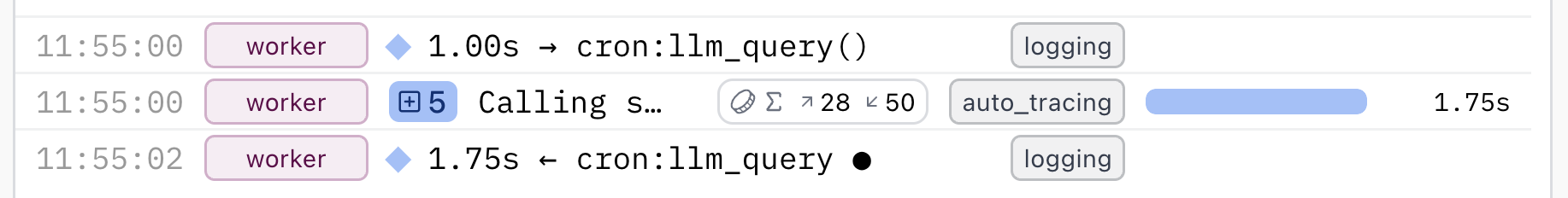

What is a Span?

A span is the building block of a trace. You might also think of spans as logs with extra functionality — a single row in our live view.

Info

Spans let you add context to your logs and measure code execution time. Multiple spans combine to form a trace, providing a complete picture of an operation's journey through your system.

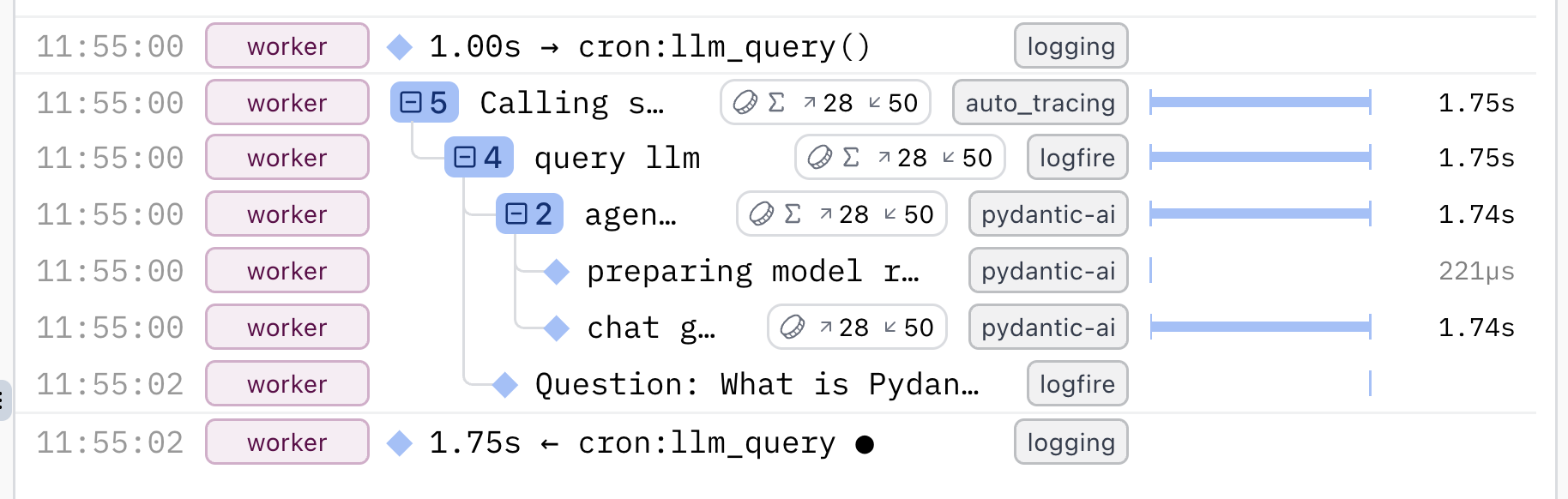

What is a Trace?

A trace is a tree structure of spans which shows the path of any client request, LLM run, API call through your application.

Spans are ordered and nested, meaning you can think of this like a stack trace - it shows you the whole history of all services touched and all responses returned.

Info

Traces are not limited to a single service — they can be propagated to completely different and isolated services. For example, a single trace could contain http requests to both a Python API and a SQL database.

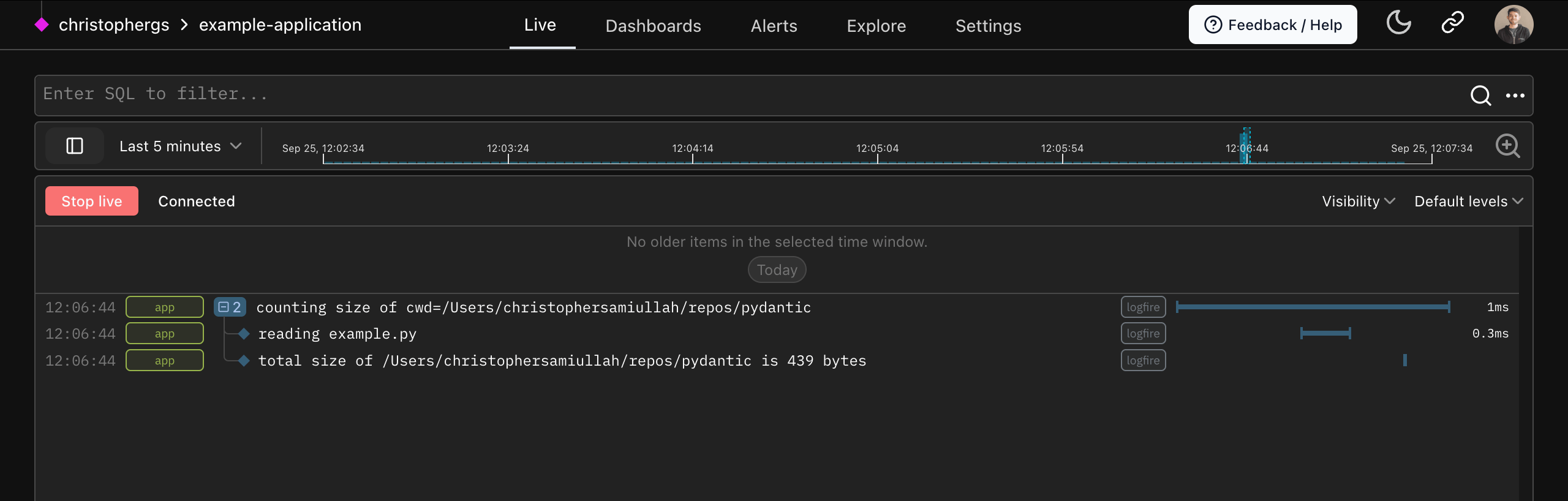

Example - File size counter

In this example:

1. The outer span measures the time to count the total size of files in the current directory (cwd).
2. Inner spans measure the time to read each individual file.
3. Finally, the total size is logged.

from pathlib import Path
import logfire

logfire.configure()

cwd = Path.cwd()
total_size = 0

with logfire.span('counting size of {cwd=}', cwd=cwd):
    for path in cwd.iterdir():
        if path.is_file():
            with logfire.span('reading {path}', path=path.relative_to(cwd)):
                total_size += len(path.read_bytes())

    logfire.info('total size of {cwd} is {size} bytes', cwd=cwd, size=total_size)

---

Example - Happy Birthday

In this example:

1. The outer span sets the topic — the user's birthday
2. The user input is captured in the terminal
3. dob (date of birth) is displayed in the span
4. Logfire calculates the age from the dob and displays age in the debug message

from datetime import date

import logfire

logfire.configure()

with logfire.span('Asking the user for their {question}', question='birthday'):  # (1)!
    user_input = input('When were you born [YYYY-mm-dd]? ')
    dob = date.fromisoformat(user_input)  # (2)!
    logfire.debug('{dob=} {age=!r}', dob=dob, age=date.today() - dob)  # (3)!

1. Spans allow you to nest other Logfire calls, and also to measure how long code takes to run. They are the fundamental building block of traces!
2. Attempt to extract a date from the user input. If any exception is raised, the outer span will include the details of the exception.
3. This will log for example dob=2000-01-01 age=datetime.timedelta(days=8838) with debug level.

---

By instrumenting your code with traces and spans, you can see how long operations take, identify bottlenecks, and get a high-level view of request flows in your system — all invaluable for maintaining the performance and reliability of your applications.

What is a Metric?

A metric a calculated value measuring your application through time.

• Metrics are collected at regular intervals—such as request latency, CPU load, or queue length
• Metrics are aggregated over time
• Metrics make it easy to chart long‑term trends, establish Service‑Level Objectives (SLOs), and trigger alerts when your system drifts outside acceptable thresholds

Alongside logs and traces, metrics complete the "three pillars" of observability, giving you a continuous, low‑overhead signal about the overall health and performance of your services.

Info

Good news: Logfire's integrations automatically set up many common metrics for you out of the box.

You can also explore our standard dashboards which provide pre-built visualizations for Web Server Metrics, Basic System Metrics (Logfire) and Basic System Metrics (OpenTelemetry).

Example - Duration of HTTP requests

import time
import logfire

logfire.configure()

# Create the histogram metric once at import time
request_duration = logfire.metric_histogram(
    'request_duration',
    unit='ms',  # milliseconds
    description='Duration of HTTP requests',
)


def handle_request():
    start = time.perf_counter()
    # … handle the request …
    duration_ms = (time.perf_counter() - start) * 1000
    # Record the observed latency
    request_duration.record(duration_ms)

Each call to request_duration.record() adds a sample to the histogram. On the backend you can visualise p50/p95 latency, set SLOs, and trigger alerts whenever performance degrades. For more metrics examples see the adding metrics guide.

What is a Log?

Logs record something which happened in your application. Importantly, they do not have a duration, compared to spans and traces.

A log is a timestamped text record, either structured (recommended) or unstructured, with optional metadata. Of all telemetry signals, logs are the best known and have the largest footprint on our collective understanding. Most programming languages have built-in logging capabilities or well-known, widely used logging libraries. Most Python users are familiar with the logging module for example.
